Description
Machine video：
|

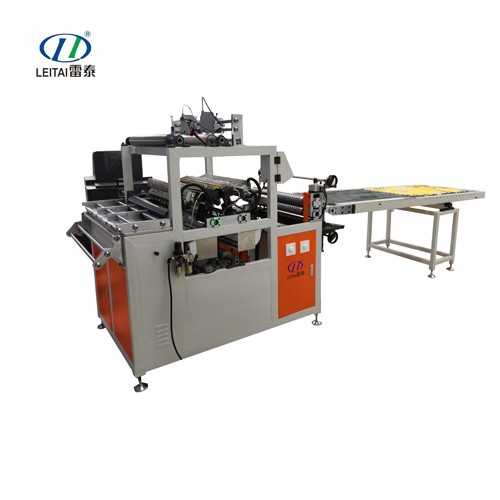

Separate Gluing Model |
Available Width |
Producting Speed |
Available Height |
Main Power |
Glue Applicator |
||
|
Quantity Auto Gun |
Capacity Tank |
Available Temperature |
|||||
|
LTZJ-PP-100-700-2 |
650mm |
5-18m/min |
10-100mm |
16kw |
24 unit*2lines |
50kg*1unit |
40-230℃ |
|
LTZJ-PP-100-950-2 |
900mm |
5-18m/min |
10-100mm |
16kw |
36unit*2lines |
50kg*1unit |
40-230℃ |
|
LTZJ-PP-100-1000-2 |
950mm |
5-18m/min |
15-100mm |
28kw |
38unit*2lines |
50kg*2unit |
40-230℃ |
|
LTZJ-PP-100-1300-2 |
1250mm |
5-18m/min |
22-100mm |
28kw |
50unit*2lines |
50kg*2unit |
40-230℃ |
|
Specification |
|||||||
|
Control System |
Touch Screen + PLC+Frequency Converters |
||||||
|
Available Material |
Cellulose/Paper, Non-woven, Synthetic Fibers,Activated carbon composite paper etc. |
||||||
|
Working Air Pressure |
6kgf/cm² |
||||||
|
Voltage |
Selectable |
||||||
|
Fold Height |
manual adjustment |
||||||
|
Use for |

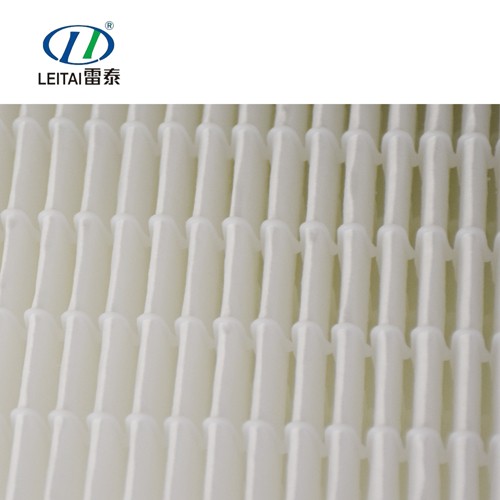

Pleating & Hotmelt gluing on various Filter Materials |
||||||
|
Advatange |
1.Continuous, intermittent, misaligned glue.Save material costs.Free Adjustments of Hotmelt Length 2.After-Treatment: Teflon, Anodizing, Chrome Coating, QPQ 3.Ion Blowers against Anti-Static |
||||||
