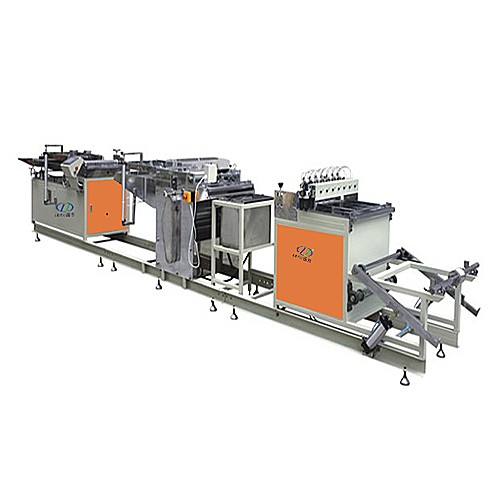

The set of production line for folding forming production ECO filter.
First. Consists
1, automatic rack
2, the filter paper to cutting machine
3, the steam device
4, automatic counter
5, disc six group type roller indentation machine
6, the filter paper folding preheating shaping device
7, folded wave mechanism
8, the conveying device
9, the filter setting heater
Second, Specification
1, the production speed: 0 ~ 30 m / min
2, production width: 30mm ~ 420mm
3, the fold high range: 12mm ~ 50mm
4, the drum specifications customized according to customer requirements
5, the temperature control range: room temperature to 300 degrees Celsius
6, the heating power: 14KW
7, the production line of the total power: 16KW
8, working pressure: 0.6MP
9, the power supply voltage: 380V/50HZ
10, the total amount of the machine: 1000KG
11, size: 6000mm * 900mm * 1200mm (length * width * height)
Third, Features
1, to cut the use of pneumatic cutting knife, easy adjustment, convenient use, pressure pendion.
2, this machine adopts steam device, use the creasing and folding filter paper is not easy to damage.
3, the function form bulge on the filter paper, is between the filter core and the paper folded to maintain a certain distance and uniform.
4, pay six drum on the same disk, convenient replacement, to meet different specifications.
5, the filter paper in the production line automatic dotting counter, folding processing, shaping processes such as preheating.
6, has the stainless steel conveyer device, the filter is more uniform in the production process of leveling. Computer control, convenient operation
