Description
Features:

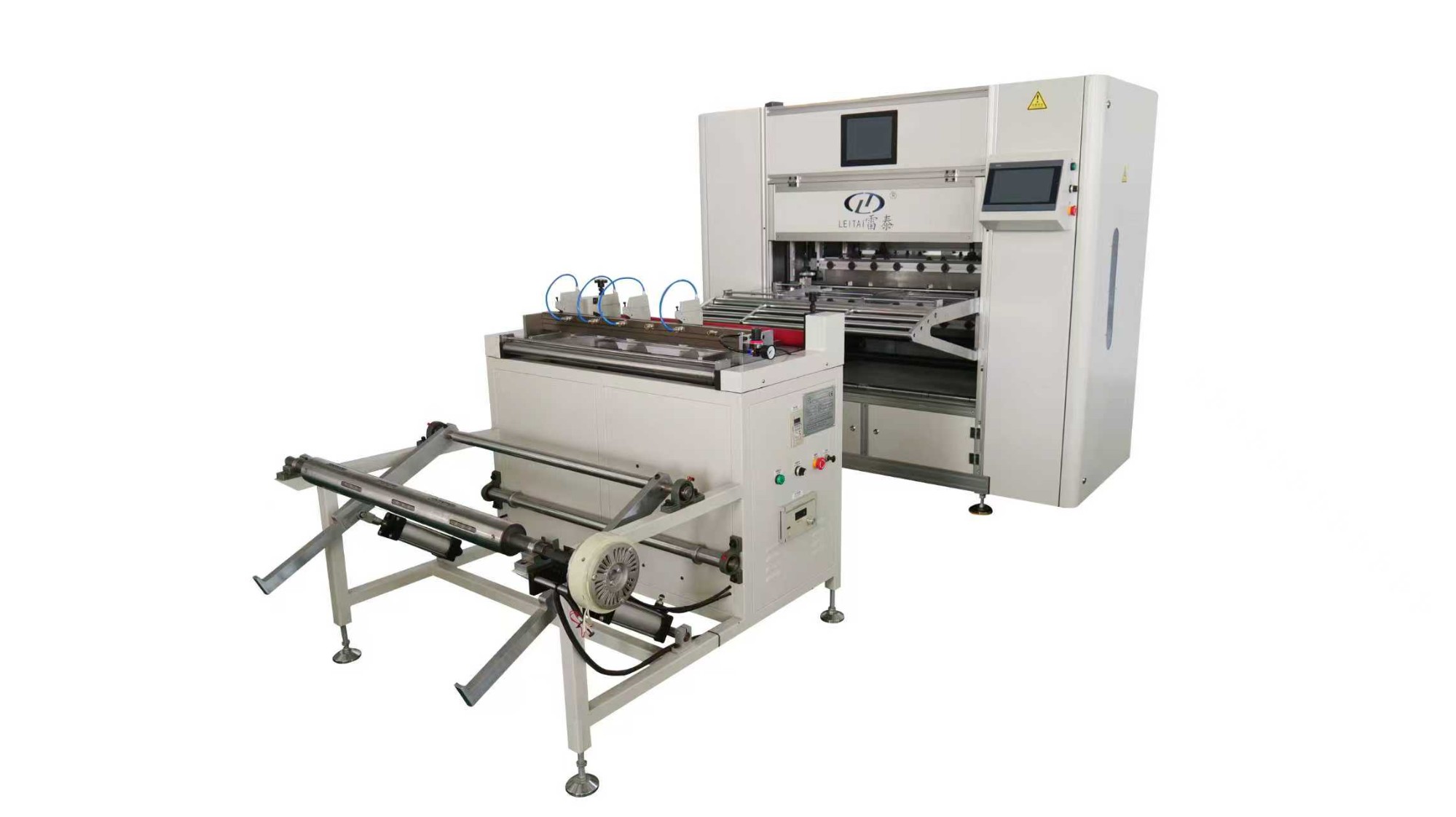

It use High-precision servo motors and gear reducers drive the upper and lower folding blades, allowing the opening angle and vertical travel to be adjusted according to the fold height; this reduces mechanical wear and enhances operational efficiency, resulting in consistently smooth and uniform folded edges.
Parameters:
|
Pleating machine model |
Available width |
Producting Speep |
Available height |
Main power |
Heating appication |
|
LTCZ-70-850-8 |
800mm |
5-400p/min |
6-70mm |
20KW |
40-230Celsius degree |
|
LTCZ-70-1050-8 |
1000mm |
5-350p/min |
6-70mm |
24KW |
40-230Celsius degree |
|
LTCZ-70-1300-8 |
1250mm |
5-300p/min |
6-70 |
28.5KW |
40-230Celsius degree |
|
LTCZ-150-850-8 |
800mm |
5-240p/min |
15-150mm |
25KW |
40-230Celsius degree |
|
LTCZ-150-1050-8 |
1000mm |
5-200p/min |
15-150mm |
29KW |
40-230Celsius degree |
|
LTCZ-150-1300-8 |
1250 |
5-160p/min |
15-150mm |
28.5KW |
40-230Celsius degree |
|
Other model |
We can customize machine of different specifications according to your requirements. |
||||
|
Control system |
Touch screen + PLC+ Servo Motor |
||||
|
Available material |
non-woven fabric ,wood pulp paper, cotton paper,iron wire fabric,sythetic paper,paper composite wire steel, copleating ,water filtration, hydraulic filter elements, PET,PPE,etc. |
||||
|
Working air pressure |
6kgf/cm2 |
||||
|
Votalge |
Selectable |
||||
|
Use for |
Auto Tri-filter industy, hydraulic pressure, purification and water treatment industries,havc filter,ect. |
||||
|
Advantages |
High efficiency
High speed and low noise,M-shaped, W-shaped,N-shaped
Use assistive function can help fold soft or hard materials, automatically adjusting to fold them more smoothly
Front and rear camera
Independently controlled upper and lower heating plate
20 sets of remembering settings. |
||||
