Description
|

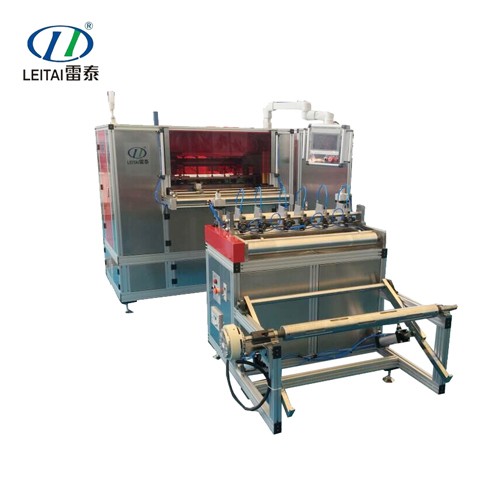

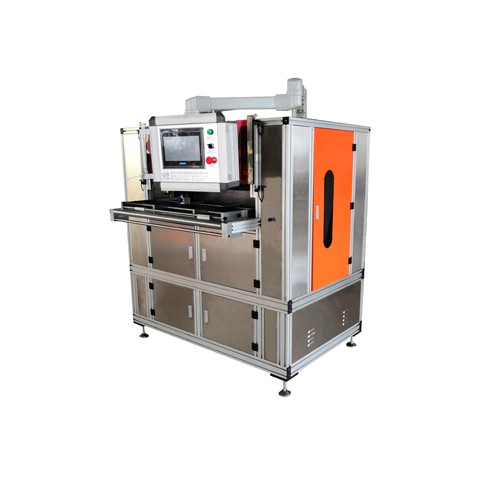

Pleating Machine Model |
Available Width |
Producting Speed |
Available Height |
Main Power |
Heating Applicator |
|
|
Heating plate |
Available Temperature |
|||||
|
LTZZ-70-850-5 |
800mm |
5-200p/min |
5-70mm |
4.5+6kw |
3unit*2lines |
40-230℃ |
|
LTZZ-70-1050-5 |
1000mm |
5-200p/min |
5-70mm |
4.5+8kw |
4unit*2lines |
40-230℃ |
|
LTZZ-70-1250-5 |
1200mm |
5-200p/min |
5-70mm |
5+10kw |
5unit*2lines |
40-230℃ |
|
Other Model |
we can customize machine of different specifications (machine wider and pleat higher) |
|||||
|
Control System |
Touch Screen + PLC+Servo motor |
|||||
|
Available Material |

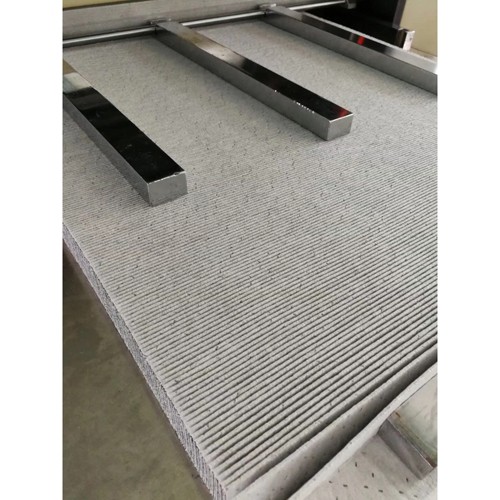

Non-woven fabric, Wood pulp paper, Cotton paper, iron wire fabric，Activated carbon composite filter paper.. |
|||||
|
Working Air Pressure |
6kgf/cm² |
|||||
|
Voltage |
Selectable |
|||||
|
Fold Height |
Full-auto adjustment .The height of the blade and the heating platen are automatically adjusted to control the folding height. |
|||||
|
Advantages than G4 |
The robot holds the blade, Good rigidity, have more advantages to Pleat steel wire mesh 、composite materials、 very thin materials . The CNC is precisely folded.The CNC is precisely folded. |
|||||
|
Use for |
Auto Tri-filter industry, hydraulic pressure, purification and water treatment industries, etc. |
|||||
|
This parameter are for reference only. |
||||||
