Description

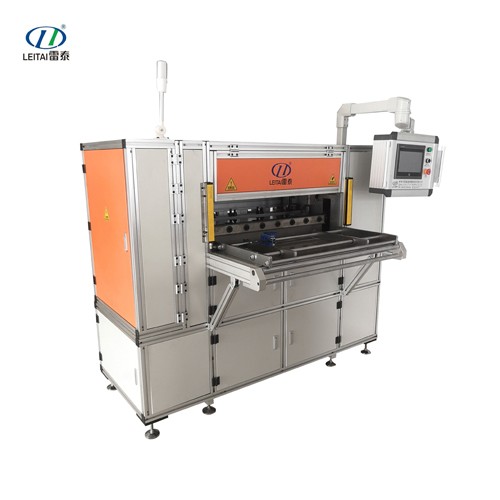

Pleating Machine
Model
Available Width
Producting Speed
Available Height
Main Power
Heating Applicator
Heating plate
Available Temperature
LTZZ-55-850-6
800mm
5-280p/min
5-55mm
5.1+12kw
6unit*2lines
40-230℃
LTZZ-55-1050-6
1000mm
5-280p/min
5-55mm
5.1+16kw
8unit*2lines
40-230℃
LTZZ-55-1250-6
1200mm
5-280p/min
5-55mm
5.7+20kw
10unit*2lines
40-230℃
LTZZ-55-1550-6
1500mm
5-280p/min
5-55mm
5.7+24kw
12unit*2lines
40-230℃
LTZZ-100-850-6
800mm
5-220p/min
15-100mm
5.1+12kw
6unit*2lines
40-230℃
LTZZ-100-1050-6
1000mm
5-220p/min
15-100mm
5.1+16kw
8unit*2lines
40-230℃
LTZZ-100-1250-6
1200mm
5-220p/min
15-100mm
5.7+20kw
10unit*2lines
40-230℃
LTZZ-100-1550-6
1500mm
5-220p/min
15-100mm
5.7+24kw
12unit*2lines
40-230℃
LTZZ-150-850-6
800mm
5-160p/min
25-150mm
5.1+12kw
6unit*2lines
40-230℃
LTZZ-150-1050-6
1000mm
5-160p/min
25-150mm
5.1+16kw
8unit*2lines
40-230℃
LTZZ-150-1250-6
1200mm
5-160p/min
25-150mm
5.7+20kw
10unit*2lines
40-230℃
LTZZ-150-1550-6
1500mm
5-160p/min
25-150mm
5.7+24kw
12unit*2lines
40-230℃
Other Model
we can customize machine of different specifications (machine wider and pleat higher)
Control System
Touch Screen + PLC+Servo motor
Available Material
Non-woven fabric, Wood pulp paper, Cotton paper, iron wire fabric.
Working Air Pressure
6kgf/cm²
Voltage
Selectable
Fold Height
Full-auto adjustment .
Differences from G5
Faster than G5.
Automatic memory + automatic reset function after power failure.
The timing belt is perfectly combined with the robot.
Use for
Auto Tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
This parameter are for reference only.
Features
(1).Feeding work platform: a limited position device on the platform to smoothly transport the filter paper without deviation;
(2).Counting marking device: counting and marking are freely controlled on the touch screen;
(3).Safety grating protection: The photoelectric induction grille is arranged before and after the folding knife to automatically identify the safety distance,
effectively protecting the safety production of the workers.
(4) automatically adjusts the servo robot principles, using perfect belt structure, folding efficiency faster speed,
the knife, the knife can be adjusted, (open angle and the angle of the platen knife automatic control)
(5).Heating device: heating the upper and lower heating plates, each heating plate has 8 heating plates,
the heating temperature is displayed, and the touch screen is freely controlled.
(6). Pressing device of the rear workbench: There are five pressboards, each of which has a cylinder control,
and the pressure can be controlled by the tension gauge to make the product output normally and stably;
(7). After the work table: sheet metal processing, surface plating hard chrome;
(8). Filter paper conveyor belt, two-position limited position device, can ensure smooth input of products;
Full servo, electronic cam control, automatic servo, automatic folding, automatic completion of filter paper folding; folding up and down, and various angles of free control,
such as the angle of the knife, the angle of the lower knife, the opening angle of the knife, the upper knife and the lower The knife can be fine-tuned, etc.,
suitable for W-type, M-type, step-step folding; various composite materials can be used, and different kinds of filter paper can be folded at the same time, etc.
