Description
|
Pre-slitting Machine Model |
Available Width |
Producting Speed |
Main Power |
Number cutters |
|
LTFQ-850-3 |
800mm |
0.5~20m/min |
0.75kw |
6 Set |
|
LTFQ-1050-3 |
1000mm |
0.5~20m/min |
0.75kw |
7 Set |
|
LTFQ-1250-3 |
1200mm |
0.5~20m/min |
1.1kw |
8 Set |
|
Other Model |
we can customize machine of different specifications (machine wider ) |
|||
|
Control System |
Frequency Converters |
|||
|
Available Material |
Non-woven fabric, Wood pulp paper, Cotton paper. |
|||
|
Working Air Pressure |
6kgf/cm² |
|||
|
Voltage |
Selectable |
|||
|
Use for |
auto Tri-filter industry, hydraulic pressure, purification and water treatment industries, etc. |
|||
|
This parameter are for reference only. |
||||

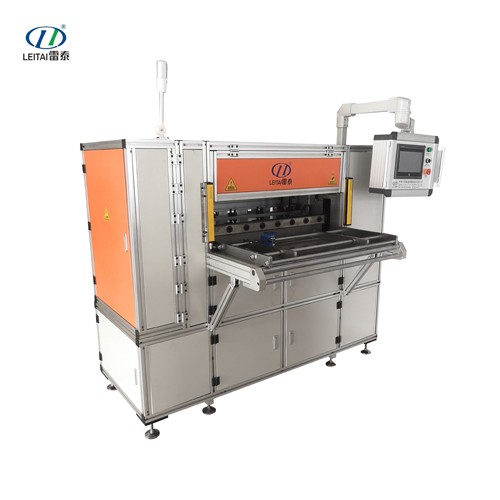

Pleating Machine
Model
Available Width
Producting Speed
Available Height
Main Power
Heating Applicator
Heating plate
Available Temperature
LTZZ-55-850-6
800mm
5-280p/min
5-55mm
5.1+12kw
6unit*2lines
40-230℃
LTZZ-55-1050-6
1000mm
5-280p/min
5-55mm
5.1+16kw
8unit*2lines
40-230℃
LTZZ-55-1250-6
1200mm
5-280p/min
5-55mm
5.7+20kw
10unit*2lines
40-230℃
LTZZ-100-850-6
800mm
5-220p/min
15-100mm
5.1+12kw
6unit*2lines
40-230℃
LTZZ-100-1050-6
1000mm
5-220p/min
15-100mm
5.1+16kw
8unit*2lines
40-230℃
LTZZ-100-1250-6
1200mm
5-220p/min
15-100mm
5.7+20kw
10unit*2lines
40-230℃
LTZZ-150-850-6
800mm
5-160p/min
25-150mm
5.1+12kw
6unit*2lines
40-230℃
LTZZ-150-1050-6
1000mm
5-160p/min
25-150mm
5.1+16kw
8unit*2lines
40-230℃
LTZZ-150-1250-6
1200mm
5-160p/min
25-150mm
5.7+20kw
10unit*2lines
40-230℃
Other Model
we can customize machine of different specifications (machine wider and pleat higher)
Control System
Touch Screen + PLC+Servo motor
Available Material
Non-woven fabric, Wood pulp paper, Cotton paper, iron wire fabric.
Working Air Pressure
6kgf/cm²
Voltage
Selectable
Fold Height
Full-auto adjustment .
Differences from G5
Faster than G5.
Automatic memory + automatic reset function after power failure.The timing belt is perfectly combined with the robot.
Use for
Auto Tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
This parameter are for reference only.
Marker Machine Model
Available Width
Producting Speed
Adjustable marking distance
Main Power
Marker Knife
LTDY-850-3
800mm
0.5~20m/min
10-150mm
2.5kw
1 set
LTDY-1050-3
1000mm
0.5~20m/min
10-150mm
3kw
1 set
LTDY-1250-3
1200mm
0.5~20m/min
10-150mm
3.6kw
1 set
Other Model
we can customize machine of different specifications (machine wider )
Control System
Touch Screen + PLC+Stepper motor
Available Material
Non-woven fabric, Wood pulp paper, Cotton paper, iron wire fabric.
Working Air Pressure
6kgf/cm²
Voltage
Selectable
Use for
auto Tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
This parameter are for reference only.
