Description
Specification
1、Product capability: 10pcs/min
2、Filter paper height:20~250mm
3、Pleating height:10~35mm
4、Sizes of Steel strips: a)thickness 0.25~0.3mm b)width 12mm c)coiled material Ф inner Dia.≧150mm、Ф outer Dia.≦650mm
5、Motor power: 1.1kw
6、Power supply:380V/50hz
7、M/C weight: 400kg
8、M/C size: 820×750×1450mm(L×W×H)
Features
1、Automatically perform the complete procedure of strip molding,clamping,shutoff and resuming.
2、Uses strip clamp filter pleating joint to prevent the filter element from leakage.
3、When molding,the strip bears knurling treatment,by which the paper is firmly held and hard of dropping.
4、The clamping height and width are easy to be adjusted and keep consistency.
5、The machine has high automatic degree for simple operation,with unique design and long service life.
Applications

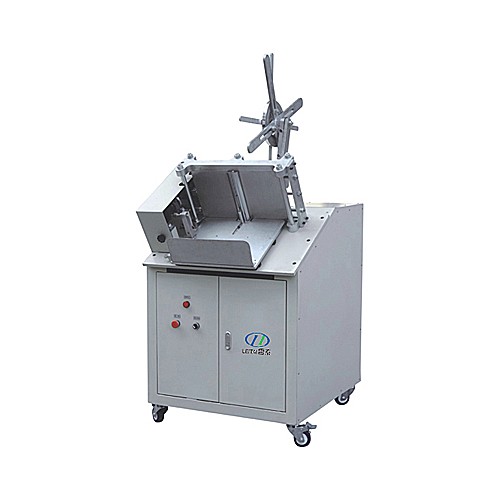

This machine is professionally used for clipping the paper ends using the steel strip.
