Description
General description

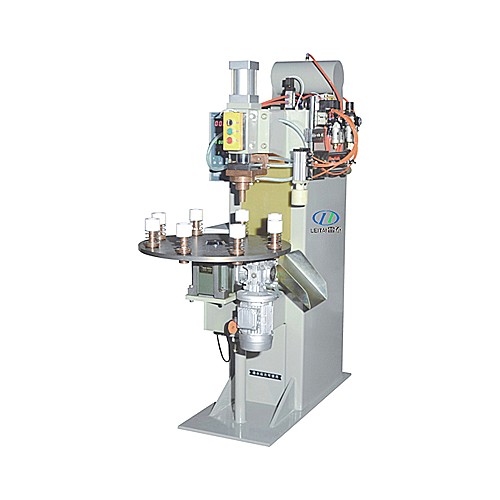

This machine is suitable for the automatic welding machine for automobile diesel oil filter cover and fixed plates.
Specification
1.Rated capacity: 100KVA
2.Rated primary voltage: 380V/50Hz
3.Phase number: 1
4.Rated primary current: 263A
5.Working pressure: 0.4Mpa
6.M/C weight: 850kg
7.M/C size: 1500×800× 1700mm(L×W×H)
Main features
1.this machine has 8 stations on the work piece, the work piece automatically removed after welding.
2.The welding is through pneumatic pressing the electrode welding,
and the welding current through direct heating method to reach the spot.
3.welding time is short, high efficiency, stable welding quality.
