Description
Specification
1、Capability：20pcs/min
2、Diameter of cap：freely
3、Glue tank capacity：15kg
4、working air pressure:0.3MPa
5、Power supply：220V/50Hz
6、Motor power：90W
7、M/C weight：250kg
8、Size of the main machine：1105×755×1050mm(L×W×H)
9、Size of the glue tank：Φ300×1100mm
Features
1、This machine is light and well built,With precise structure,which is easy to be protected,
2、High efficiency with two glue heads.
3、New designed head is used which make the sealing function more safe.
4、The speed of the main axis can be controlled through variable speed motor to accommodeate different working demands.
5、Adopts the time relay control,which is operated easily and glued accurately.
Applications

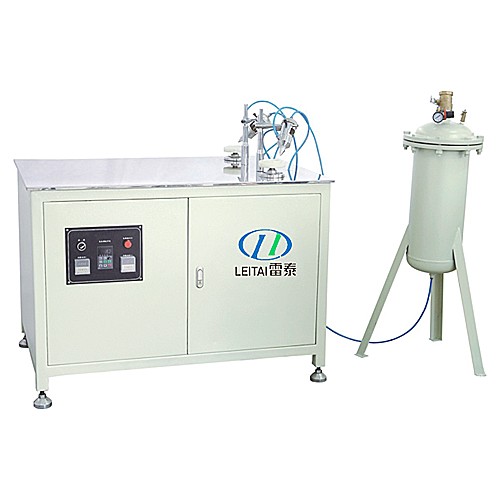

This machine mainly used for gluing the sealed plate of the spin-on filters.
