Description
|

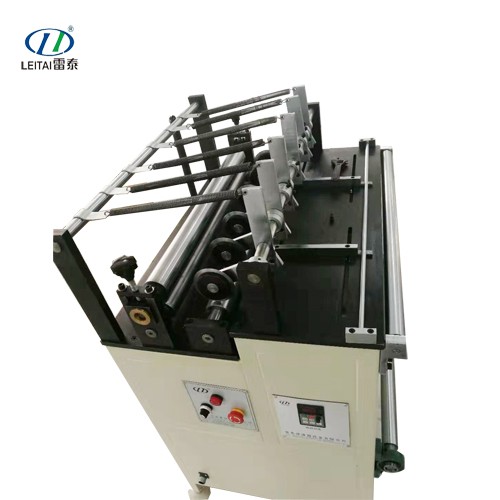

Pre-slitting Machine Model |
Available Width |
Producting Speed |
Main Power |
Number cutters |
|
|
LTFQ-650-1 |
600mm |
0.5~15m/min |
0.55kw |
5 Set |
|
|
LTFQ-850-1 |
800mm |
0.5~15m/min |
0.75kw |
6 Set |
|
|
LTFQ-1050-1 |
1000mm |
0.5~15m/min |
0.75kw |
7 Set |
|
|
Marker Machine Model |
Available Width |
Producting Speep |
Adjustable marking distance |
Main Power |
Marker Knife |
|
LTDY-650-1 |
600mm |
0.5~15m/min |
10-150mm |
1.1kw |
1 set |
|
LTDY-850-1 |
800mm |
0.5~15m/min |
10-150mm |
1.1kw |
1 set |
|
LTDY-1050-1 |
1000mm |
0.5~15m/min |
10-150mm |
1.1kw |
1 set |
|
Other Model |
we can customize machine of different specifications (machine wider ) |
||||
|
Control System |
Frequency Converters |
||||
|
Available Material |
non-woven fabric, Wood pulp paper, Cotton paper. |
||||
|
Working Air Pressure |
6kgf/cm² |
||||
|
Voltage |
Selectable |
||||
|
Use for |
auto Tri-filter industry, hydraulic pressure, purification and water treatment industries, etc. |
||||
|
This parameter are for reference only. |
|||||
|

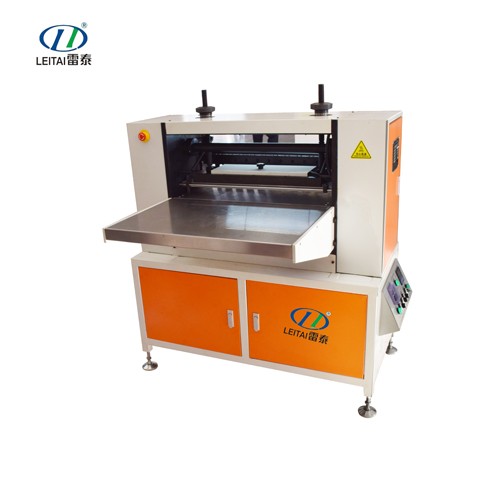

Pleating Machine Model |
Available Width |
Producting Speed |
Available Height |
Main Power |
Heating Applicator |
|
|
Heating plate |
Available Temperature |
|||||
|
LTZZ-55-650-1 |
600mm |
5-160p/min |
5-55mm |
1.1+4kw |
2 unit*2lines |
40-230℃ |
|
LTZZ-55-850-1 |
800mm |
5-160p/min |
5-55mm |
1.1+6kw |
3unit*2lines |
40-230℃ |
|
LTZZ-55-1050-1 |
1000mm |
5-160p/min |
5-55mm |
1.1+8kw |
4unit*2lines |
40-230℃ |
|
LTZZ-55-1250-1 |
1200mm |
5-160p/min |
5-55mm |
1.5+10kw |
5unit*2lines |
40-230℃ |
|
LTZZ-55-1550-1 |
1500mm |
5-160p/min |
5-55mm |
1.8+12kw |
6unit*2lines |
40-230℃ |
|
LTZZ-100-850-1 |
800mm |
5-140p/min |
12-100mm |
1.1+6kw |
3unit*2lines |
40-230℃ |
|
LTZZ-100-1050-1 |
1000mm |
5-140p/min |
12-100mm |
1.1+8kw |
4unit*2lines |
40-230℃ |
|
LTZZ-150-850-1 |
800mm |
5-120p/min |
20-150mm |
1.1+6kw |
3unit*2lines |
40-230℃ |
|
LTZZ-150-1050-1 |
1000mm |
5-120p/min |
20-150mm |
1.5+8kw |
4unit*2lines |
40-230℃ |
|
Other Model |
we can customize machine of different specifications (machine wider and pleat higher ）， |
|||||
|
Control System |
Frequency Converters |
|||||
|
Available Material |
non-woven fabric, Wood pulp paper, Cotton paper, iron wire fabric. |
|||||
|
Working Air Pressure |
6kgf/cm² |
|||||
|
Voltage |
Selectable |
|||||
|
Fold Height |
manual adjustment |
|||||
|
Use for |
auto Tri-filter industry, hydraulic pressure, purification and water treatment industries, etc. |
|||||
|
This parameter are for reference only. |
||||||
