Description
Specification
1、Product capacity：20~35pcs/min
2、Tube ID：Φ30~Φ75mm(include five sizes)
3、Tube length: freely
4、Metal thickness：0.25~0.32mm
5、Motor power：3KW
6、Power voltage：380V/50HZ
7、Working air pressure：0.6MPa8、M/C weight：800kg
9、Size of the main machine：1600×800×1240mm(L×W×H)
10、Size of the paper decoiler：1200×800×760mm(L×W×H)
Features
1、The machine can easily change the diameter of screw tube in a short time.
2、Cut the needed length according to what the customers' specifications.
3、Can adjust the clutch according to different thickness of the steel strip.
4、 The computer control machine can save production costs and working procedures with its high efficiency,
steady quality and economical materials.
5、Adopts hydraulic pressure drive, which has strong power and good stable.
Applications

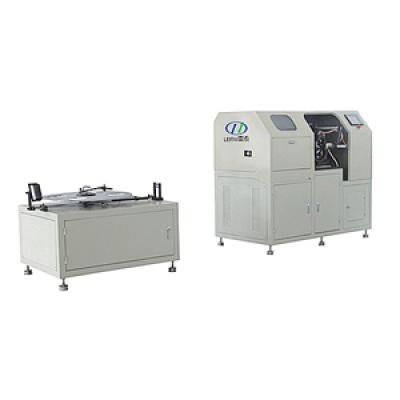

The machine is technically used in manufacturing the center tubes of the auto. Oil and fuel filters. Furthermore,
the perforated/round hole spiral tube can be made as well.
