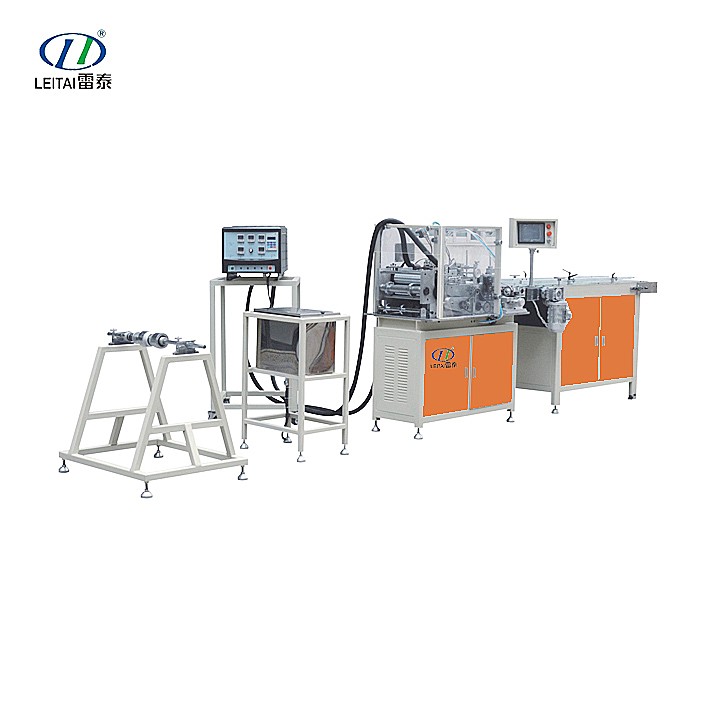

Description
Consists
1、Paper de-coiler
2、Heater
3、Water steam device
4、Pleating machine
5、Hot-melt unit
6、Belt conveyer
7、Automatic counting
Specification
Paper width：90mm-320mm
Pleat depth：20mm-58 mm
2. Speed：5-25m/min
3. Temp. Control range：0-300℃
4. Heat power：8.5kw
5. Main MC power：0.75kw
6. Convey power: 0.25kw
7. Convey speed: 0-5m/min
8. Power voltage：380V/50HZ
9. Working air pressure：0.6MPa
9.Power supply：380V/50Hz
10.M/C weight：1100kg
11.M/C size：7500×950×1750mm(L×W×H)
Applications
It is technically used fo manufacturing the car panel filter.
