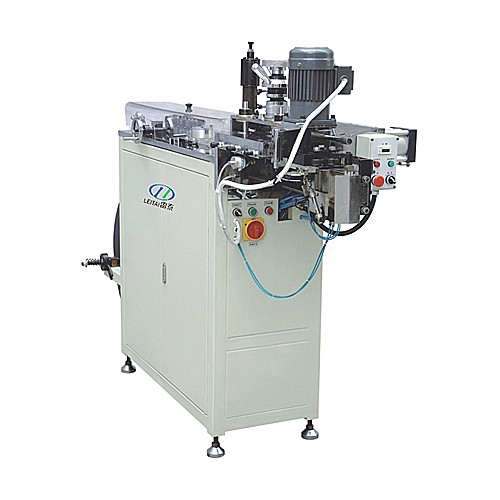

Description
Specification
1、Product capability：12pcs/min
2、Filter paper height：30~250mm
3、Pleating height：10~38mm
4、Sizes of Steel strips：a) thickness 0.25~0.3mm b)width 12mm c)coiled material Φ inner Dia.>150mm、Φ outer Dia.<600mm
5、Motor power：100W
6、Power supply：380V/50Hz
7、Working air pressure：0.6MPa
8、M/C weight：450kg
9、M/C size：1930×750×1380mm(L×W×H)
Features
1、 By means of the PLC control air circuit and machinery, the machine automatically perform
the complete procedure of strip molding/clamping/shutoff and resuming which keeps quick speed and high efficiency.
2、Uses strip clamp filter folding joint to prevent the filter element from leakage.
3、When molding, the strip bears salient point treatment, by which the paper is firmly held and hard of dropping.
4、The clamping height and width are easy to be adjusted and keep consistency.
5、The machine employs imported high-quality pneumatic and electrical elements that of long service life.
Applications
The machine is professionally used for clipping the paper ends using the steel strip.
