Technical Parameter:
1.Feeding Speed:15m/min（According to the height of pleating）
2.Width of Material:≤1300mm
3.Roll Size of Raw Material:≤800mm

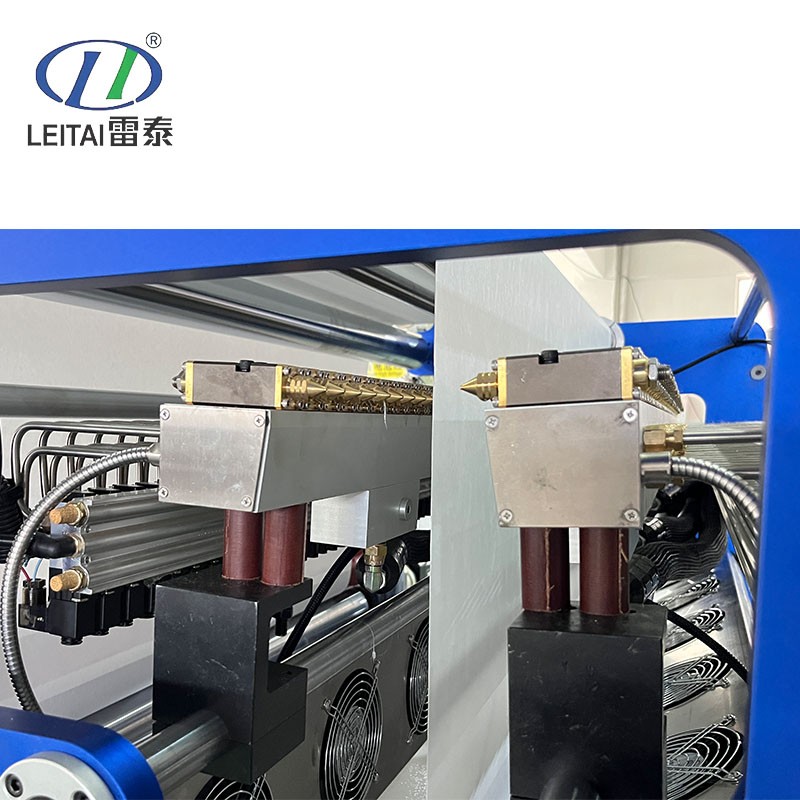

4.Number of Glue Injection Nozzle:48x2
5.Glue Line Space:25.4mm
6.Adhesive Method:Cross injetion
7.Folding Height Range:20-300mm
8.Total Power:27kw
9.Hot Melt Machine:50L(2 pcs)
10.Melt Speed:45kg/h
11.Voltage:380V/50Hz
12.Air Pressure:0.6Mpa
13.Net Weight:1700kg
14.Dimension:7185x2145x1720mm
