Description
|
Model |
Available Width |
Producting Speed |
Available Height |
Main Power |
Glue Applicator |
||
|
Quantity Auto Gun |
Capacity Tank |
Available Temperature |
|||||
|
LTWG-100-700 |
650mm |
5-20m/min |
20-100mm |
18kw |
24 unit*2lines |
50kg*1unit |
40-230℃ |
|
LTWG-100-900 |
900mm |
5-20m/min |
20-100mm |
18kw |
36unit*2lines |
50kg*1unit |
40-230℃ |
|
LTWG-100-1000 |
950mm |
5-20m/min |
20-100mm |
30kw |
38unit*2lines |
50kg*2unit |
40-230℃ |
|
LTWG-100-1300 |
1250mm |
5-20m/min |
22-100mm |
30kw |
50unit*2lines |
50kg*2unit |
40-230℃ |
|
LTWG-100-1600 |
1550mm |
5-20m/min |
28-100mm |
33.3kw |
60unit*2lines |
50kg*2unit |
40-230℃ |
|
Specification |
|||||||
|
Control System |
Touch Screen + PLC+Servo |
||||||
|
Available Material |
Glass Fiber |
||||||
|
Working Air Pressure |
6kgf/cm² |
||||||
|
Voltage |
Selectable |
||||||
|
Fold Height |
adjustment |
||||||
|
Use for |

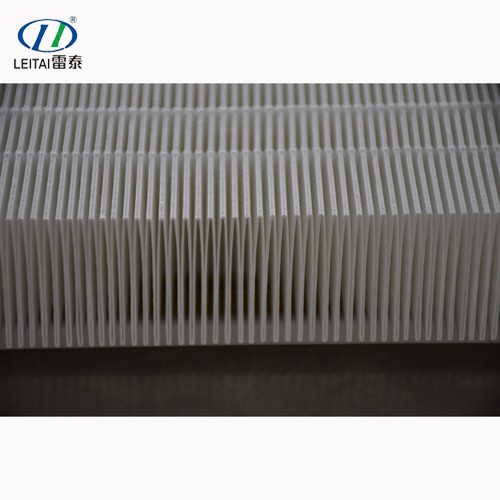

ULPA HEPA Medium pleating and glueing |
||||||

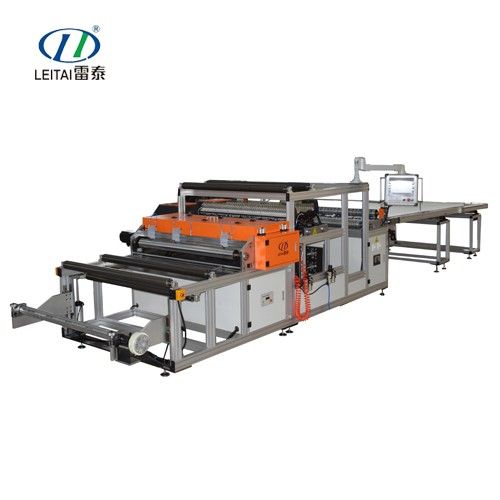

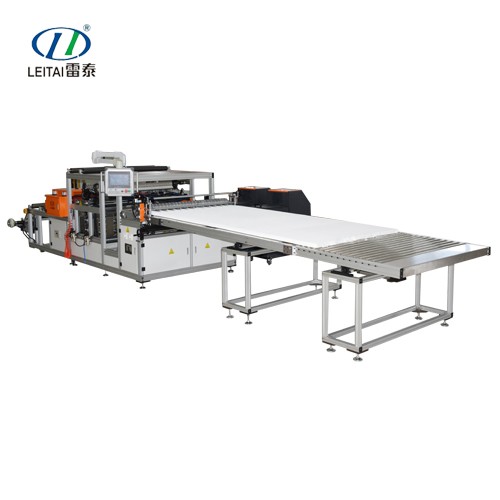

Profiler
1.PLC + Touch Screen Control+Servo System.

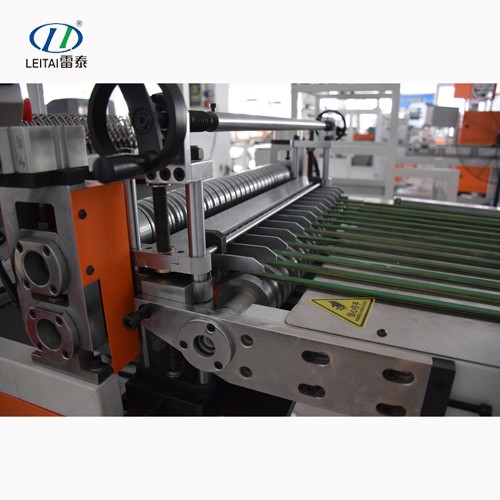

2.Soft Scoring Roller System: so can ensure the high quality of the produced filter, No damage to the media/blades (Reduce huge scrap), Extending machine life, Reducing noise & vibratio.
3.Perfect design and reliable components ensure the high quality and excellent performance.
4.Both the fiber glass pleating and hot melts dispensing on the same machine.
5.Mini pleating machine for HEPA filter, filter for Electronic clean room, operating room, the purification workshop GMP pharmaceutical workshop food QS certification,
6.It’s very easy and Friendly for operator.
7.Air-cooled pressure control,Teflon coating roller
8.conveyer belt and the hot melt applicator are all controlled by the PLC.
9.Material Tension controlled by Powder Brake and Tension Controller.
