Description
|

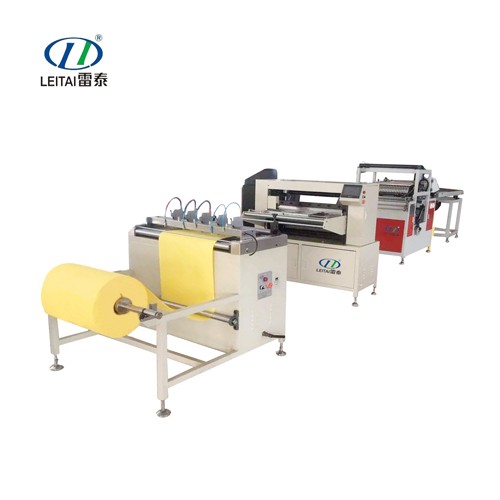

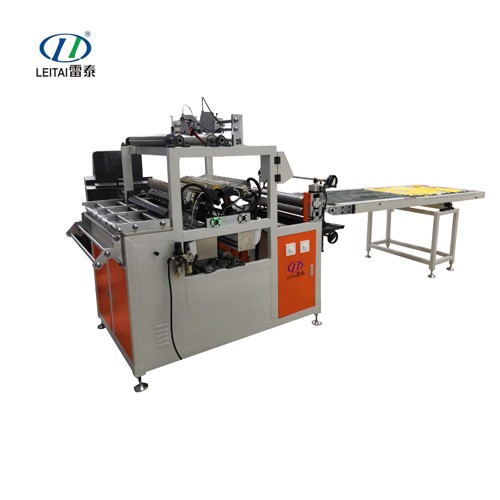

Separate Gluing Model |
Available Width |
Producting Speed |
Available Height |
Main Power |
Glue Applicator |
||
|
Quantity Auto Gun |
Capacity Tank |
Available Temperature |
|||||
|
LTZJ-PP-100-700-2 |
650mm |
5-18m/min |
10-100mm |
16kw |
24 unit*2lines |
50kg*1unit |
40-230℃ |
|
LTZJ-PP-100-950-2 |
900mm |
5-18m/min |
10-100mm |
16kw |
36unit*2lines |
50kg*1unit |
40-230℃ |
|
LTZJ-PP-100-1000-2 |
950mm |
5-18m/min |
15-100mm |
28kw |
38unit*2lines |
50kg*2unit |
40-230℃ |
|
LTZJ-PP-100-1300-2 |
1250mm |
5-18m/min |
22-100mm |
28kw |
50unit*2lines |
50kg*2unit |
40-230℃ |
|
Specification |
|||||||
|
Control System |
Touch Screen + PLC+Frequency Converters |
||||||
|
Available Material |
Cellulose/Paper, Non-woven, Synthetic Fibers,Activated carbon composite paper etc. |
||||||
|
Working Air Pressure |
6kgf/cm² |
||||||
|
Voltage |
Selectable |
||||||
|
Fold Height |
manual adjustment |
||||||
|
Use for |

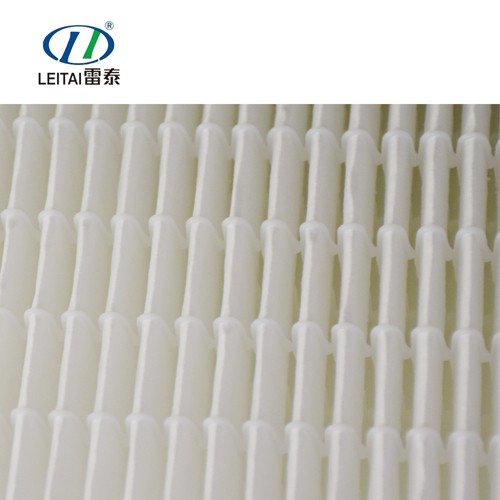

Pleating & Hotmelt gluing on various Filter Materials |
||||||
|
Advatange |
1.Continuous, intermittent, misaligned glue.Save material costs.Free Adjustments of Hotmelt Length 2.After-Treatment: Teflon, Anodizing, Chrome Coating, QPQ 3.Ion Blowers against Anti-Static |
||||||
Pre-slitting Machine Model
Available Width
Producting Speed
Main Power
Number cutters
LTFQ-650-2
600mm
0.5~15m/min
0.55kw
5 Set
LTFQ-850-2
800mm
0.5~15m/min
0.75kw
6 Set
LTFQ-1050-2
1000mm
0.5~15m/min
0.75kw
7 Set
LTZZ-1250-2
1200mm
0.5~15m/min
1.1kw
8 Set
Other Model
we can customize machine of different specifications (machine wider )
Control System
Frequency Converters
Available Material
Non-woven fabric, Wood pulp paper, Cotton paper.
Working Air Pressure
6kgf/cm²
Voltage
Selectable
Use for
auto Tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
This parameter are for reference only.
Pleating Machine
Model
Available Width
Producting Speed
Available Height
Main Power
Heating Applicator
Heating plate
Available Temperature
LTZZ-55-650-2
600mm
5-160p/min
5-55mm
1.1+4kw
2 unit*2lines
40-230℃
LTZZ-55-850-2
800mm
5-160p/min
5-55mm
1.1+6kw
3unit*2lines
40-230℃
LTZZ-55-1050-2
1000mm
5-160p/min
5-55mm
1.5+8kw
4unit*2lines
40-230℃
LTZZ-55-1250-2
1200mm
5-160p/min
5-55mm
1.5+10kw
5unit*2lines
40-230℃
LTZZ-100-850-2
800mm
5-140p/min
15-100mm
1.1+6kw
3unit*2lines
40-230℃
LTZZ-100-1050-2
1000mm
5-140p/min
15-100mm
1.5+8kw
4unit*2lines
40-230℃
LTZZ-100-1250-2
1200mm
5-140p/min
15-100mm
1.5+10kw
5unit*2lines
40-230℃
Other Model
we can customize machine of different specifications (machine wider and pleat higher)
Control System
Touch Screen + PLC
Available Material
Cellulose/Paper, Non-woven, Synthetic Fibers
Working Air Pressure
6kgf/cm²
Voltage
Selectable
Fold Height
Semi-auto adjustment, + Need to manually adjust the blade.
Use for
auto Tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
This parameter are for reference only.
