Description
Specification:

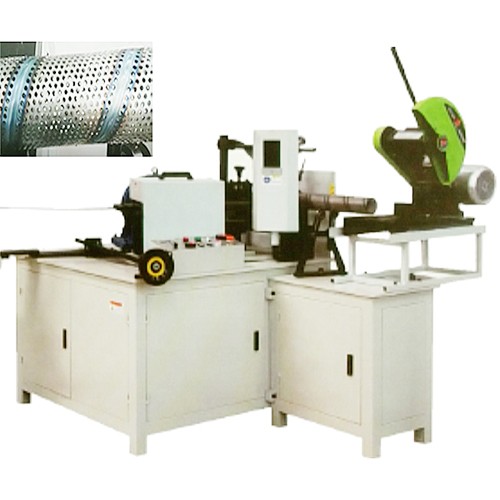

This machine is used to manufacture the center tuber for the oil,fuel and hydraulic filters.it can produce the perforated or louvered holes.
1. production efficiency :0-3.5 m/min
2. Making diameter range:50-150mm
3. Tube lenght:cut as set/ Saw blade cutting
4:Pipeline welding method:Sprial argon arc welding
4.Steel strip thickness:0.9-1.5mm
5.Steel strip width:30-110customized
6. Steel strip type :Stainless Steel,Carbon Steel
7.Motor power:3.75kw
8.Power:380V/50HZ
9. Size: 2000mm*1800*1800mm
10.Current welding :300A
