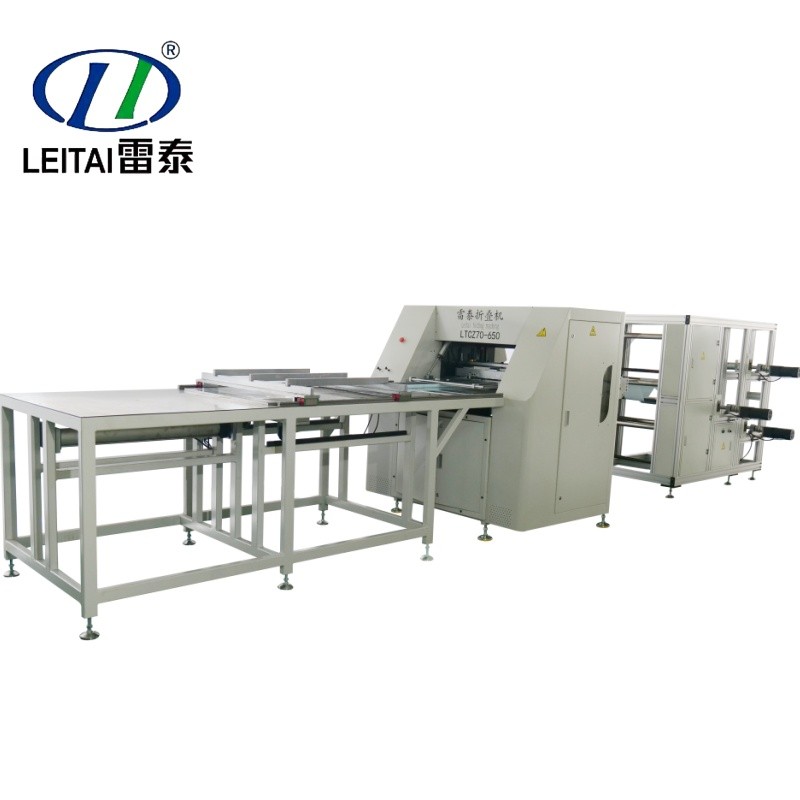

PRODUCT DESCRIPTION
1.Automatic feeding rack, which is equipped with a modern monitoring system and can adjust the working speed at will according to different conditions.
2.Each discharge shaft is controlled by an independent motor and monitoring system to control the discharge speed, so that each layer of material is kept in a suitable
state of tension during the conveying process.
3.The blade folding machine uses high-precision servo motor and reducer to drive the upper and lower folding blades. The opening Angle and lifting stroke of the folding
blades can be adjusted according to the folding height, which reduces mechanical loss and improves work efficiency.
4.The origami machine not only folds fast, but also has low noise, and the folded products have flat and uniform end surfaces.
PRODUCT SPECIFICATIONS
1.Three-Tier Material Rack
| Raw material coil diameter | Max 450mm |
| Maximum filter paper width | 650mm |
| Material layers | 3 layers |
| Power of motor | 0.6kw |
| Supply voltage | 220v/50hz |
2.Pleating Machine
| Pleating width | Max 600mm |
| Pleating height range | 6-70mm |
| Capacity | Max 200 pleat/min |
| Supply voltage | 380v/50hz |
| Air source | 0.6Mpa |
| Heat setting temperature | Normal-200℃ |
| Heat setting power | 6kw |
| Power of motor | 3.6kw |
| Gross weight | 700kg |
| Dimension |
1565mm×1630mm×1600mm |
