Description

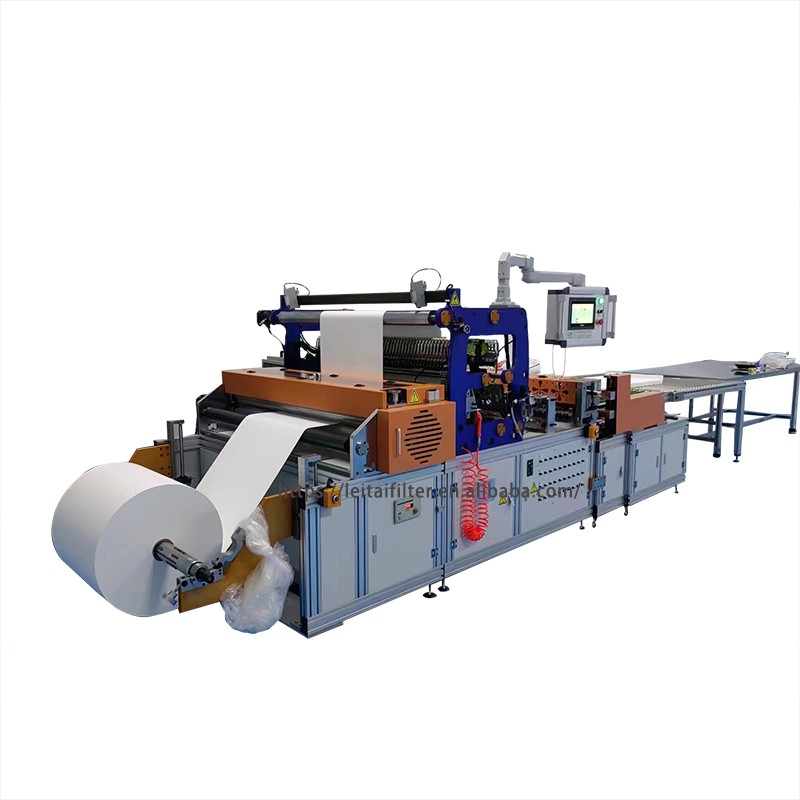

Technical parameter
(1) Feeding speed: 20 meters/min (based on folding height)(2) Material width: ≤ 900mm
(3) Raw material roll diameter: ≤ 800mm
(4) Number of glue injection lines: 36X2
(5) Glue line spacing: 25.4mm
(6) Injection method: injection molding
(7) Folding height range: 20-100mm
(8) Total machine power: 17KW
(9) Hot melt glue machine: 50 liters
(10) Sol speed: 45KG/h
(11) Power supply voltage: 380V/50Hz
(12) Gas source pressure: 0.6MPa
(13) Gross weight approximately: 1700KG
(14) Dimensions: 5460mm x 1800mm x 1900mm (length x width x height)
