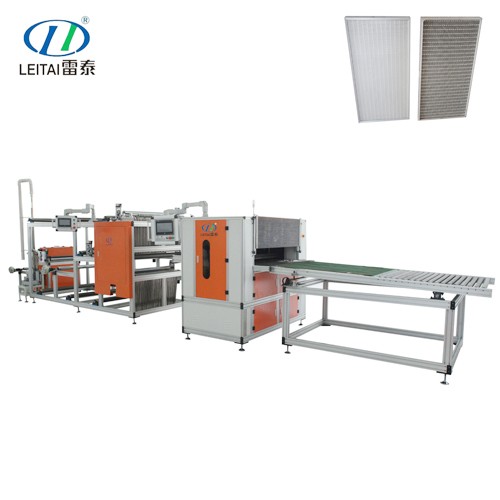

High Temperature Resistance HEPA Air Filter Pleating Machine with Glass Fiber Line Replace the Gluing Line, - Image 1

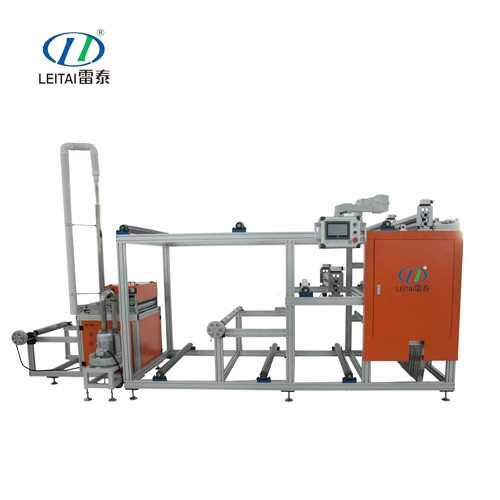

High Temperature Resistance HEPA Air Filter Pleating Machine with Glass Fiber Line Replace the Gluing Line, - Image 2

High Temperature Resistance HEPA Air Filter Pleating Machine with Glass Fiber Line Replace the Gluing Line,

Description

Model	Available Width	Producting Speed	Available Height	Main Power	Glass fiber line making
					Quantity Glass fiber line	Pulling device
LTWG-HT-1000-100	950mm	2-10m/min	20-100mm	5.5kw	*36unit2lines**	2 set
Specification
Control System	Touch Screen + PLC+Servo
Available Material	Glass Fiber
Working Air Pressure	6kgf/cm²
Voltage	Selectable
Fold Height	adjustment
Use for	The High-Temp-Hepa Filter be used to High temperature environment purification, Glass fiber line instead of glue line.

Profiler

1.PLC + Touch Screen Control+Servo System. High temperature heat resistance HEPA filter folding machine.
2.Perfect design and reliable components ensure the high quality and excellent performance.
3. The High-Temp-Hepa Filter be used to High temperature environment purification,
Glass fiber line instead of glue line
4.Anti-break device，So not break the glass fiber line.
5.conveyer belt and the hot melt applicator are all controlled by the PLC.
6.Material Tension controlled by Powder Brake and Tension Controller.
7Glass fiber line making device, Pulling device, Composite folding device.
