Description
Specification
1.Product capacity: 35-45pcs/min
2.Filter diameter：￠56-110mm
3.Filter height：50-270mm
4.Suitable metal thickness：0.5-0.8mm
5.Conveyer length: Left: 3000mm Right:2000 mm
7.Power voltage：380V/50HZ
8.Working air pressure：0.6MPa
Features

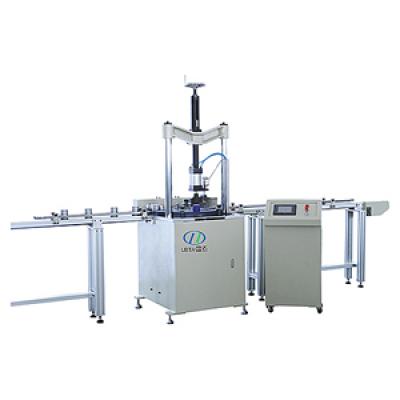

1.Electric and pneumatic controls are used by the seaming machine. The feed movements are carried out for the first roller and second roller by two sets of cam mechanics.
2.Loading and unloading of the processing port will be done by the pneumatic parts that are controlled by the pre-determined program.
3.The sealing wheel uses cr12mov of high as- quenched hardness and fine wear resistance to lengthen the service life.
4.This machine adopts the high precise import divider to ensure the seaming quality.
5.This is high speed seaming machine, has the completely automatically circulation of the up-loading, seaming and down-loading.
Applications
This machine is mainly used for seaming the shells of the spin-on oil& fuel filters.
