Description
|

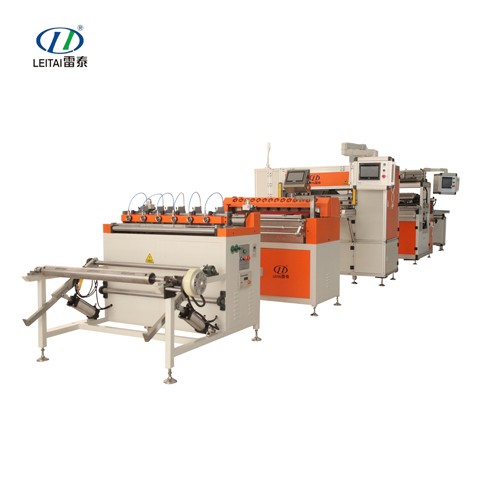

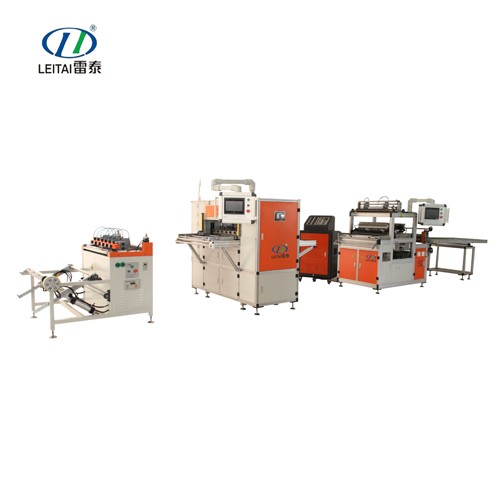

Separate Gluing Model |
Available Width |
Producting Speed |
Available Height |
Main Power |
Glue Applicator |
||
|
Quantity Auto Gun |
Capacity Tank |
Available Temperature |
|||||
|
LTZJ-PP-100-700-3 |
650mm |
5-20m/min |
10-100mm |
16kw |
24 unit*2lines |
50kg*1unit |
40-230℃ |
|
LTZJ-PP-100-950-3 |
900mm |
5-20m/min |
10-100mm |
16kw |
36unit*2lines |
50kg*1unit |
40-230℃ |
|
LTZJ-PP-100-1000-3 |
950mm |
5-20m/min |
15-100mm |
28kw |
38unit*2lines |
50kg*2unit |
40-230℃ |
|
LTZJ-PP-100-1300-3 |
1250mm |
5-20m/min |
22-100mm |
28kw |
50unit*2lines |
50kg*2unit |
40-230℃ |
|
Specification |
|||||||
|
Control System |
Touch Screen + PLC+ Servo motor |
||||||
|
Available Material |
Cellulose/Paper, Non-woven, Synthetic Fibers,Activated carbon composite paper etc. |
||||||
|
Working Air Pressure |
6kgf/cm² |
||||||
|
Voltage |
Selectable |
||||||
|
Fold Height |
manual adjustment |
||||||
|
Use for |
Pleating & Hotmelt gluing on various Filter Materials |
||||||
|
Advatange |
1. Continuous, intermittent, misaligned glue.Save material costs. Free Adjustments of Hotmelt Beads Pattern/Position/Length 2.After-Treatment: Teflon, Anodizing, Chrome Coating, QPQ 3.Ion Blowers against Anti-Static |
||||||
Pre-slitting Machine Model
Available Width
Producting Speed
Main Power
Number cutters
LTFQ-850-3
800mm
0.5~20m/min
0.75kw
6 Set
LTFQ-1050-3
1000mm
0.5~20m/min
0.75kw
7 Set
LTZZ-1250-3
1200mm
0.5~20m/min
1.1kw
8 Set
Other Model
we can customize machine of different specifications (machine wider )
Control System
Frequency Converters
Available Material
Non-woven fabric, Wood pulp paper, Cotton paper.
Working Air Pressure
6kgf/cm²
Voltage
Selectable
Use for
auto Tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
This parameter are for reference only.
Marker Machine Model
Available Width
Producting Speed
Adjustable marking distance
Main Power
Marker Knife
LTDY-850-3
800mm
0.5~20m/min
10-150mm
2.5kw
1 set
LTDY-1050-3
1000mm
0.5~20m/min
10-150mm
3kw
1 set
LTDY-1250-3
1200mm
0.5~20m/min
10-150mm
3.6kw
1 set
Other Model
we can customize machine of different specifications (machine wider )
Control System
Touch Screen + PLC+Stepper motor
Available Material
Non-woven fabric, Wood pulp paper, Cotton paper, iron wire fabric.
Working Air Pressure
6kgf/cm²
Voltage
Selectable
Use for
auto Tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
This parameter are for reference only.
